| Product Name: | UL/TUV Energy Storage Power Connector 250A Waterproof Socket Threaded Copper Bar Black | Certification: | IEC61984 & UL4128 & TUV |
|---|---|---|---|
| Operation Current: | 250A | Durability: | 200 Cycles |
| Operating Temperature : | -40 ℃～125℃ | Protection Grade: | IP67 |
| Flame Retardant: | UL94 V0 | Product Qualification: | RoHS2.0 |
| Application Contact: | Crimping,Threaded Copper Bar,Copper Bars,Male Thread | Apply Wire Gage: | 50mm²/70mm² |
| Compressive Strength: | TUV:4260V AC UL:6800V AC | Part Number: | JS.01F250S9B10 |
| Highlight: | Black waterproof sockets,TUV waterproof sockets,UL weather proof sockets |
||

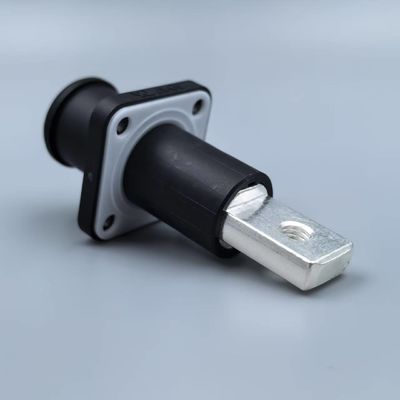

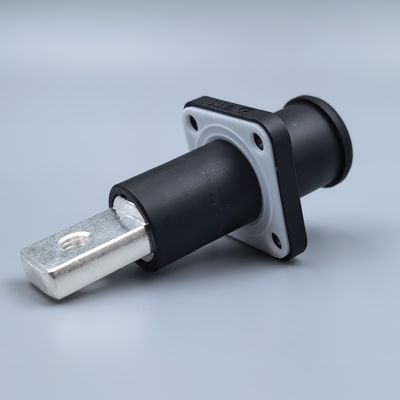

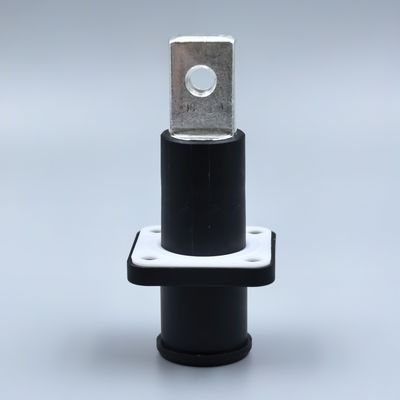

UL/TUV Energy Storage Power Connector 250A Waterproof Socket Threaded Copper Bar Black
1 . Descriptions:
The Energy Storage Power Connector is a high-voltage connector product suitable for industries such as industrial and commercial energy storage and household energy storage. The product offers different specifications of 120A, 250A, and 350A, and uses high-performance CrystalBand patented torsion spring technology to systematically ensure product reliability. The product offers different colors and key options to meet the diverse application needs of customers.
Applications: Energy storage,Semiconductor equipment,Machinery
2 . Specifications:
|
Name |
UL/TUV Energy Storage Power Connector 250A Waterproof Socket Threaded Copper Bar Black |
|
UL Approval |
UL94 V0 |
|
Certification |
IEC61984 & UL4128 & TUV |
|
Apply Wire Gage |
50mm²/70mm² |
|
Dimension |
H=10.90±0.10mm,H=11.85±0.10mm |
|
Application Contact |
Threaded copper bar,Copper bars,Crimping,Male thread |
|
Operation Current |
250A |
|
Rated Voltage |
1500V DC |
|
LLCR |
＜0.2 mΩ |
|
Insulation Resistance |
＞100MΩ |
|
Compressive Strength |
TUV:4260V AC UL:6800V AC |
|
Material |
Copper alloy |
|
Mating Force |
<100N |
|
Withdraw Force |
>10N |
|
Durability |
200 cycles |
|
Operating Temperature |
-40 ℃～125℃ |
|
Thermal Cycle |
Mated connector -40℃/30 min.,125℃/30min. Making this a cycle, repeat 99 cycles |
|
Damp Heat |
Mated connector,-40～+125℃, 80～100 % R. H. 40 cycles |
3 . Related Materials Download
:
New Generation Power Line Connectors 250A Product Data Sheet.pdf
4 . Hole Size:
5 . Advantage:
Comprehensive Specifications to Meet Diverse Needs
Our product range covers a full spectrum of 120A to 400A, catering to various application scenarios. It supports multiple connection methods (crimping/screw/bar) and offers a variety of color options (orange, black, red, etc.), ensuring adaptability for different environments.
Exceptional Reliability for Quality Assurance
Multi-contact crown spring design: Ensures stable connectivity and extended lifespan.
Integrated terminal structure: Effectively reduces temperature rise for consistent performance.
Compliant with international standards (UL/TUV/CE) for comprehensive safety certification.
IP67 protection rating: Resistant to environmental challenges, ideal for demanding conditions.
User-friendly Design to Boost Efficiency
The innovative snap-fit structure allows for easy operation, making installation and maintenance faster and more efficient.
